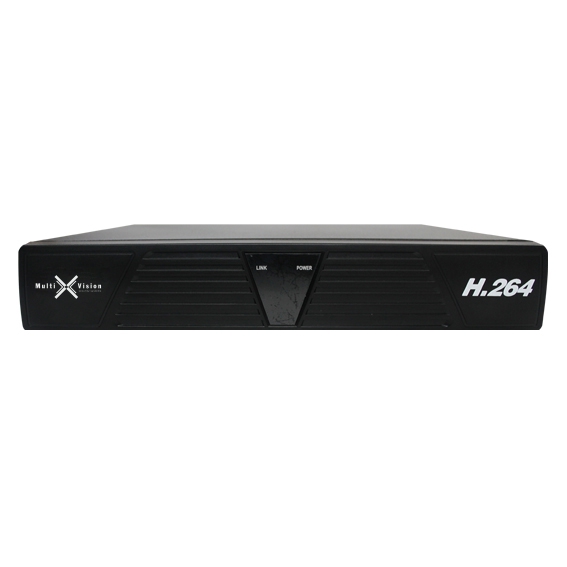

MXV-NVR7708M

System Structure

Embedded LINUX design ,dual core DSP, pure hardware compression, Hard disk store, IP network video input.

Video Input

Full 4CH 1080P, Support IPC dual stream input, motion and device add, recording, preview and configuration automatically

NVR Recording

H.264 compression, support recording store, local playback and internet access remote recording inquire

NVR Video output

1*BNC / HDMI / VGA

SATA Interface

1 * SATA II interface, support maximum 3T capacity

Network Interface

1*RJ45 Ethernet port, support 10/100/1000M self-adaption, 1* remote client access, WEB monitor

USB Interface

2 * USB interface, support mouse operation and U disk recording backup

HDD

Support 1*3TB HDD

 ONVIF

NVR Support ONVIF 2.0

Business Function

Support mouse operation and OSD, real time video transmission, WEB monitor client

Product dimension

258mm*228mm*45mm

NVR Voltage

DC 12V input interface

NVR Net weight

2kg

NVR Consumption

≤ 12 W

NVR Case

Metal shell

Standard Configuration

3.0A power and mouse ( without hard disk )
